Original designer/maker from Taiwan since 1972 - HT5C new model
Share this page
HT5C Manual EI-76.2 Lamination Stacking Machine
Only 12 -14 seconds to complete stacking 1 unit transformer
Manual EI-76.2 (EI100H) Lamination Stacking Machine
The insulation material coil is not 100% square, so it will need slow stacking.
Example : A little deformation
85% stacking
100% stacking

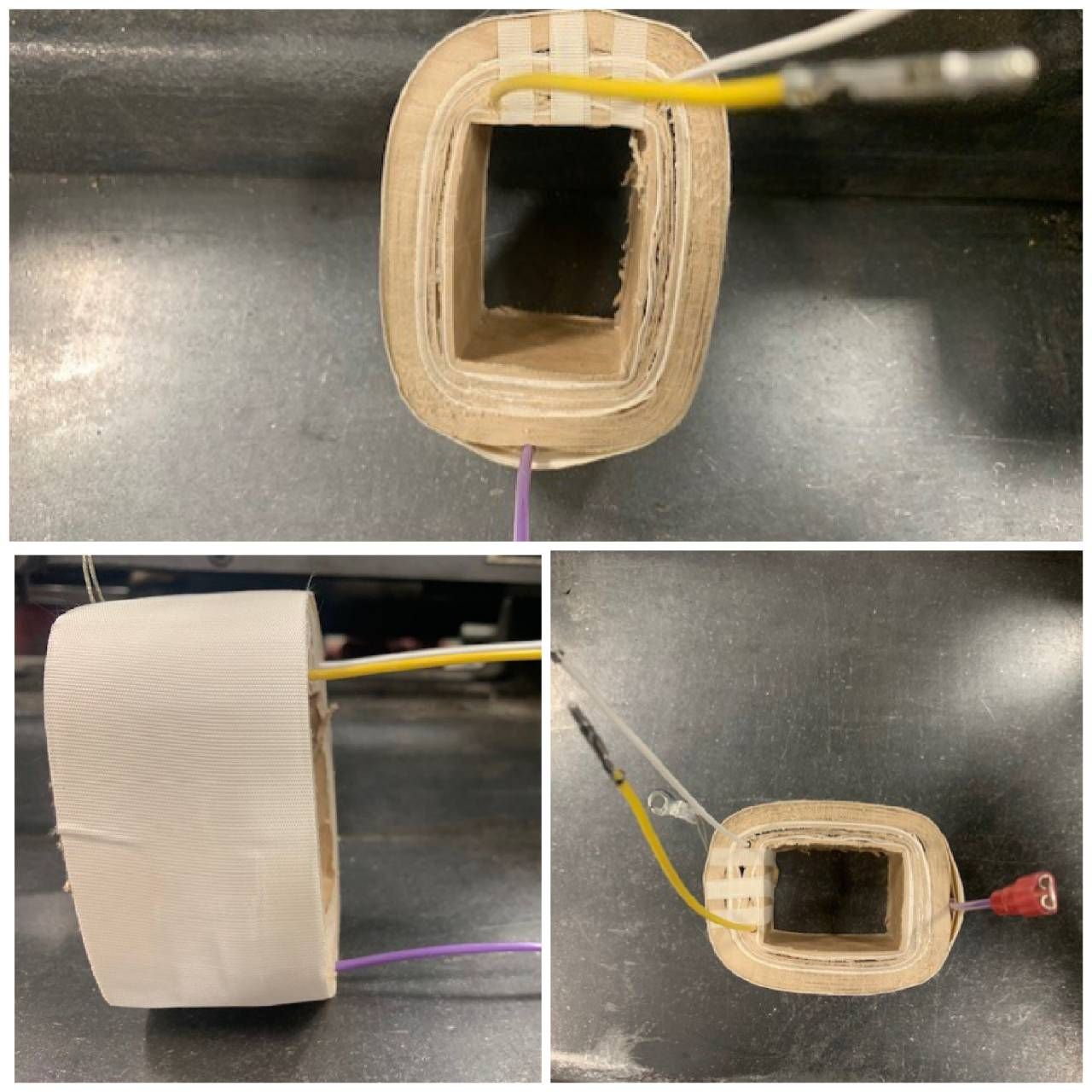

Insulation Material carboard Coil
